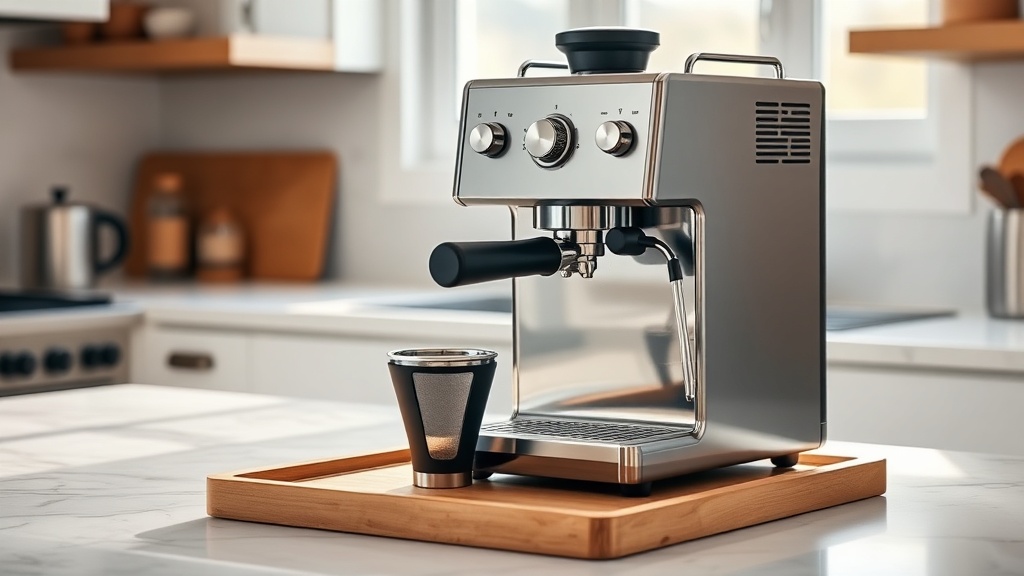

The BrewWise Thermoblock: A Machine Built for Precision, Held Back by Its Basket
The BrewWise Thermoblock has earned a reputation among home baristas for its rapid heat-up time and consistent brew temperature, largely thanks to its efficient thermoblock heating system. Yet many owners discover early on that the stock filter basket can be a bottleneck, leaving finer grounds under-extracted and producing a thin crema. Modifying the basket—either by drilling, chamfering, or swapping—can unlock a fuller, more balanced shot without any changes to the machine’s pressure or grind setting. This article walks you through the practical steps, the specific mods that work, and what the community has learned from trial and error.
Why Does the Stock Basket Limit Extraction on the BrewWise Thermoblock?
The factory-fitted BrewWise Thermoblock basket is pressed from thin stainless steel with a tight hole pattern—typically between 300 and 400 holes, each roughly 0.4 mm in diameter. This design aims to prevent fines from passing through, but it also restricts flow when using a fine grind, leading to channeling and uneven extraction. The basket’s shallow taper further reduces the depth of the coffee bed, limiting the effective contact time between water and grounds.
- Hole diameter too small: Clogs quickly with fines, causing pressure to spike and then drop abruptly.
- Low hole count: Insufficient surface area for even water distribution across the puck.
- Shallow basket profile: Encourages a thinner puck, which is more prone to cracking.
Modifying the basket addresses these core issues by allowing a more uniform flow at the intended 9‑bar pressure, which you can fine-tune using our companion guide on BrewWise Thermoblock: How to Adjust OPV for Optimal Pressure.
How Do I Drill the BrewWise Thermoblock Basket Without Ruining It?
Drilling out the stock basket is the most direct mod, but it requires steady hands and the right bits. Use a set of micro‑bits (0.5 mm, 0.6 mm, and 0.7 mm) to enlarge each hole incrementally. Start with the 0.5 mm bit to clear any burrs, then step up to 0.6 mm for the majority of holes, and finish with a 0.7 mm bit only on the outer ring to improve edge flow. Always clamp the basket upright in a padded vise and use a low‑speed drill (300–500 RPM) with cutting oil to avoid warping.
| Bit size | Hole group | Resulting flow | Risk |
|---|---|---|---|
| 0.5 mm | All holes (first pass) | Marginal improvement | Low |
| 0.6 mm | Center 200 holes | 25% faster flow, less channeling | Medium – burrs possible |
| 0.7 mm | Outer ring (approx. 50 holes) | Better edge extraction | Higher – may weaken basket |
Important: After drilling, deburr every hole using a 0.4 mm needle file or a fine ceramic stone, then rinse with distilled water. One common mistake is drilling all holes to 0.7 mm—this creates too much flow and results in sour, watery shots. Start conservatively and test your extraction after each modification.
What Is Chamfering and How Does It Improve the Basket’s Performance?
Chamfering—the process of cutting a small bevel (usually 45°) around the inside rim of each hole—reduces the sharp edge that catches fines and slows flow. On the BrewWise Thermoblock basket, chamfering the inner side of the holes using a 0.5 mm countersink bit creates a smoother entry for water, reducing the pressure drop across the basket and promoting even wetting of the coffee bed. This mod is especially effective when combined with a slightly coarser grind, as it minimises premature clogging.

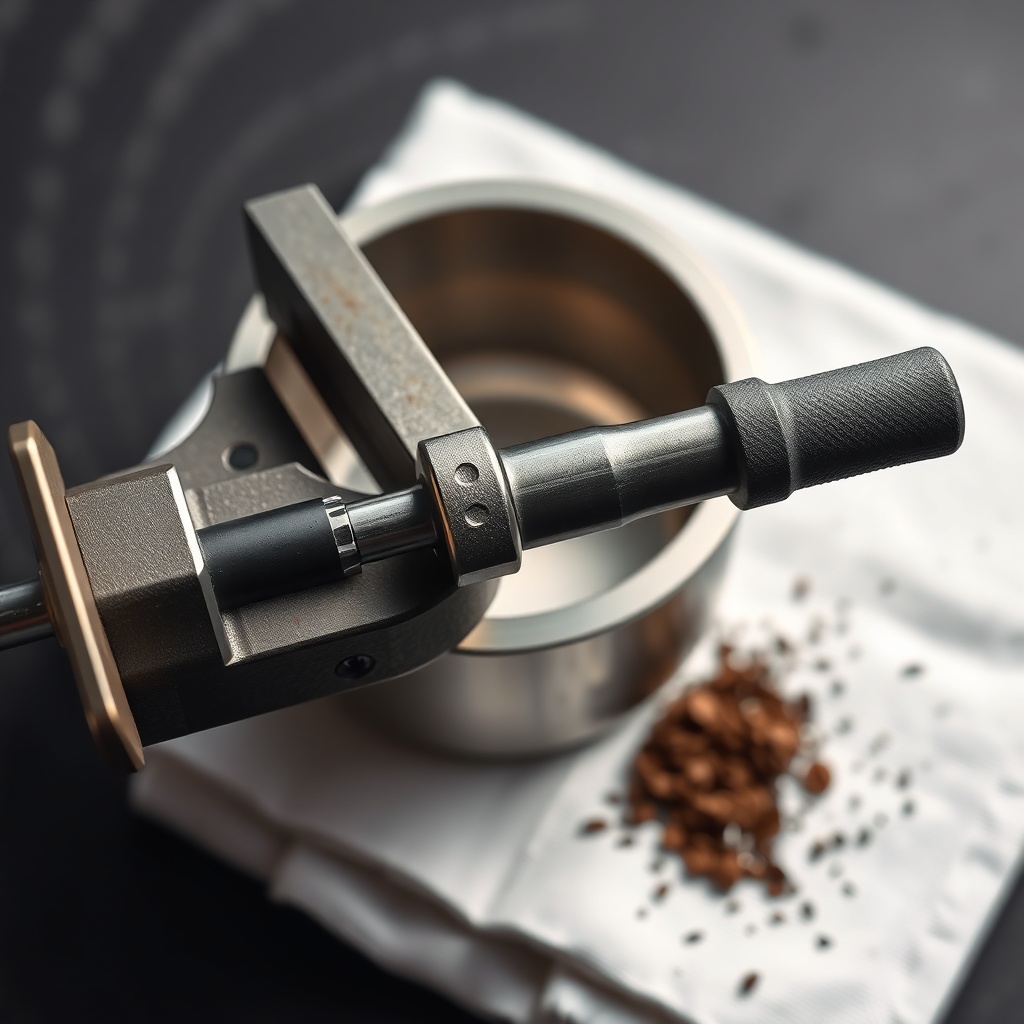

To chamfer correctly, you’ll need a drill press or a hand‑held pin vise to maintain a consistent depth (no more than 0.2 mm). Work from the inside out, and after every fifth hole, stop to check for metal shavings. A chamfered basket on the BrewWise Thermoblock typically yields a 2‑3 second faster pre‑infusion and a visibly denser crema. For best results, pair this with a good water filtration system—read our guide on BrewWise Thermoblock: Which Water Filtration System Works Best for Your Espresso Machine? to avoid scale building up inside the chamfered holes.
Should I Replace the Stock Basket with an Aftermarket Precision Basket?

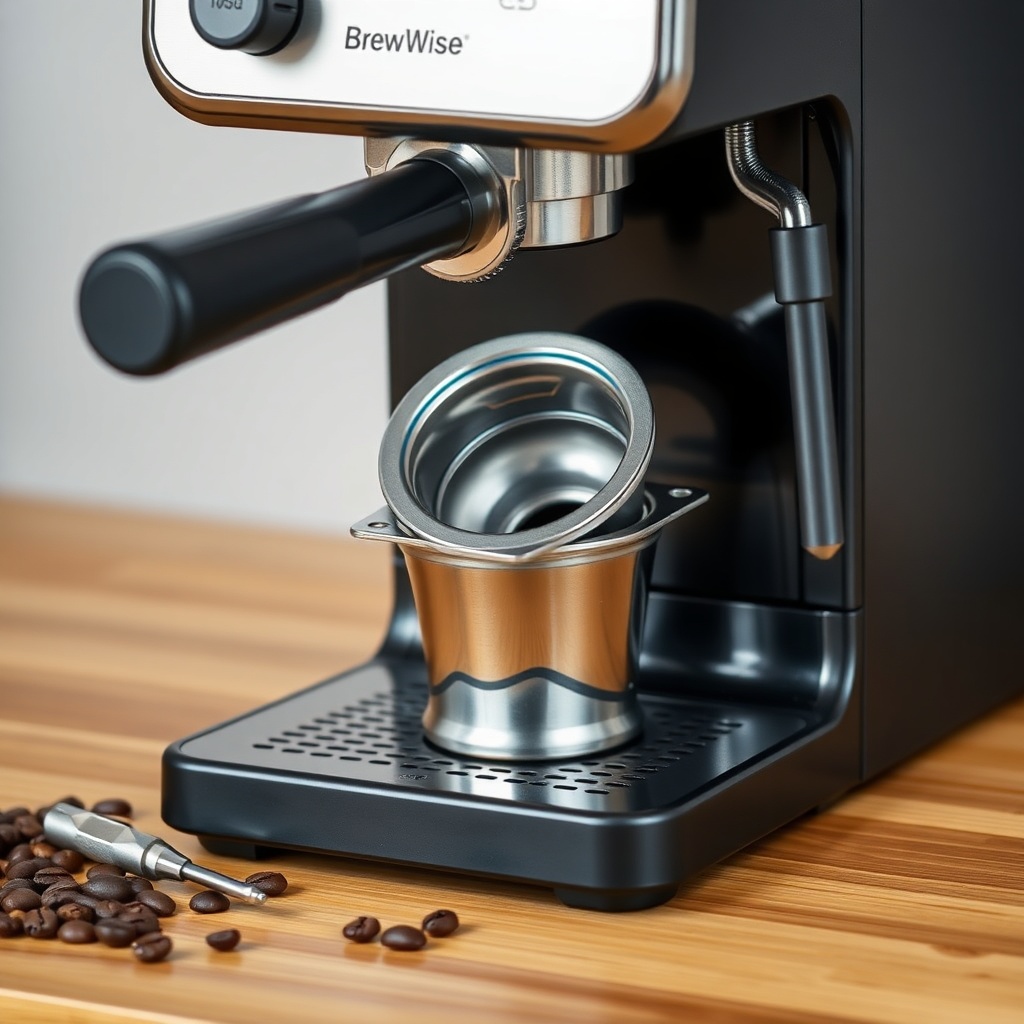

If you’d rather avoid drilling or chamfering, a drop‑in replacement from brands like VST or IMS can be a more predictable path to better extraction. The BrewWise Thermoblock uses a 58 mm standard basket, but note that the stock spring clip is quite tight—you may need to compress it gently with pliers before inserting an aftermarket basket. Precision baskets offer tighter tolerances (hole diameters within ±0.02 mm) and higher hole counts (up to 700 holes at 0.3 mm each), which dramatically reduce channeling.
- VST 18 g basket: Excellent for light roasts; requires a finer grind and a 2‑3 second longer pre‑infusion.
- IMS Competition 20 g basket: Better for medium to dark roasts; gives thicker body with less bitterness.
- Pullman 17 g basket: Designed for low‑dose shots; fits the Thermoblock’s group head without portafilter modification.
Cost ranges from £25 to £45 (depending on the retailer in the UK), and while that’s an investment, it often produces more consistent results than a DIY drill mod. Keep in mind that swapping the basket may require you to BrewWise Thermoblock: OPV Adjustment Guide for Optimal Pressure to maintain a 9‑bar extraction, as the higher flow basket can cause the OPV to open prematurely.
How Does Basket Depth and Dosing Affect Extraction Quality?
The BrewWise Thermoblock’s group head is designed for a standard 14–18 g dose, but many users find that a 16–17 g dose with a 20 g basket yields the best extraction. A deeper puck provides more resistance, which helps the machine build and maintain pressure without relying solely on the OPV. If you’re using a shallow basket (e.g., the stock 14 g), the puck is thin and can crack under pressure, leading to gusher shots. By switching to a 20 g precision basket and dosing 18 g of coffee, you increase the bed depth by roughly 4 mm, which slows the flow and extracts more solubles.
Use a distribution tool or WDT to ensure even density across the basket. The Thermoblock’s internal pump is relatively robust, but it still benefits from a consistent puck. For those who notice a persistent sourness even after basket mods, check your pressure settings—our article on BrewWise Thermoblock: How to Adjust OPV for Optimal Pressure covers the step‑by‑step calibration.
What Do Owners Say About Modified BrewWise Thermoblock Baskets?
The UK home barista community has been vocal about this mod. On forums like Coffee Hit UK and Reddit’s r/espresso, owners report that a drilled or replaced basket turns the Thermoblock from a good entry‑level machine into a genuinely capable espresso maker. Many highlight that the machine’s thermoblock maintains temperature stability better than expected once the basket allows proper flow. Some caveats: drilling voids the warranty and can be tricky for first‑timers. Several owners emphasise that you must fully deburr the basket, or the rough edges will shed metal into your coffee. Overall, the consensus is that a modified basket is the single most impactful tweak you can make—more so than changing the steam wand technique, though we have a dedicated guide on BrewWise Thermoblock: Steam Wand Purging Technique for Consistent Frothing for those who also want to improve milk texture.
Frequently Asked Questions
Will drilling the basket void the warranty?
Yes. Any physical modification to the basket, including drilling or chamfering, will void the factory warranty. If your machine is still under warranty, consider purchasing a separate aftermarket basket instead.
What if I accidentally make the holes too large?
If the flow becomes too fast (shot completes in under 15 seconds for a double), you will need to replace the basket. A new stock basket can be ordered directly from BrewWise for about £12, or you can switch to a precision basket.
Do I need to adjust the grind setting after modifying the basket?
Almost always. After enlarging holes or switching to a precision basket, you will need to grind finer—typically by two to three clicks on a stepless grinder—to restore the correct flow rate and extraction time.
Can I use the same modification for a single shot basket?
The stock single‑shot basket on the BrewWise Thermoblock has an even shallower profile, which makes drilling less effective. Most users find better results by sticking to a double basket for modified work.
How often should I replace a modified basket?
A properly drilled and deburred stainless steel basket can last several years if kept free of scale. However, inspect the holes monthly for any rough edges caused by wear from the portafilter spring. Replace it if you see any burrs forming.
Does a precision basket improve the chance of error codes showing up?
No, but increased basket flow combined with a clogged OPV or dirty solenoid can trigger error codes related to pressure or flow. For troubleshooting assistance, see our comprehensive guide on BrewWise Thermoblock: How to Diagnose and Fix Common Error Codes.
